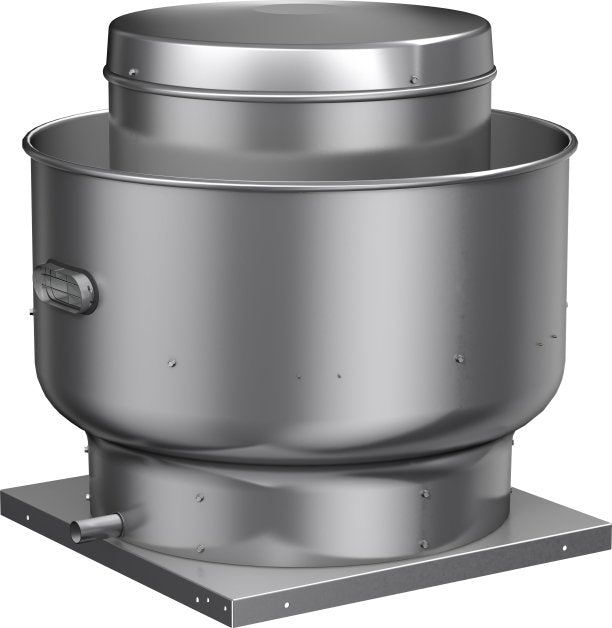

Greenheck - CUBE-120-4119GQD-DR4 - Centrifugal Upblast Exhaust Fan, 1153-1759 CFM
$2,200.90
Skip to product information
Greenheck - CUBE-120-4119GQD-DR4 - Centrifugal Upblast Exhaust Fan, 1153-1759 CFM
$2,200.90
Availability confirmed before order acceptance
CUBE-120-4119GQD-DR4
- Free shipping on eligible orders over $100
- Availability confirmed before order acceptance
- Need product help? Contact our team before ordering to confirm fit, application, and technical details
Specifications
Specifications
- Manufacturer Model: CUBE-120-4119GQD-DR4
- Lead Time: Confirmed before order acceptance
Greenheck CUBE-120-4119GQD-DR4 — Centrifugal Upblast Exhaust Fan.
The fans feature a one piece windband continuously welded to curb cap and double studded isolators for true vibration isolation. 19 x 19 inch base with prepunched mounting holes for easy attachment to roof curb Roof or wall mountable 15.5 x 15.5 inch recommended roof opening
- Voltage: 115
- CFM Range: 1153-1759
- HP: 1/4
- Hertz: 60
- RPM: 1800
- Drive Type: Belt Drive
- Shipping Type: Freight
- Height: 28 1/4 in
- Housing Material: Spun Aluminum
- Warranty Length: 1 Year
- Weight: 60 lbs
- Motor Phase: 1
- Impeller Type: Centrifugal Wheel
- Impeller Material: Aluminum
