Canarm ESV222N04TXB VFD - Lenze Series Variable Frequency Multi-Function Micro Drive
$1,606.80
Availability confirmed before order acceptance
ESV222N04TXB
- Free shipping on eligible orders over $100
- Availability confirmed before order acceptance
- Need product help? Contact our team before ordering to confirm fit, application, and technical details

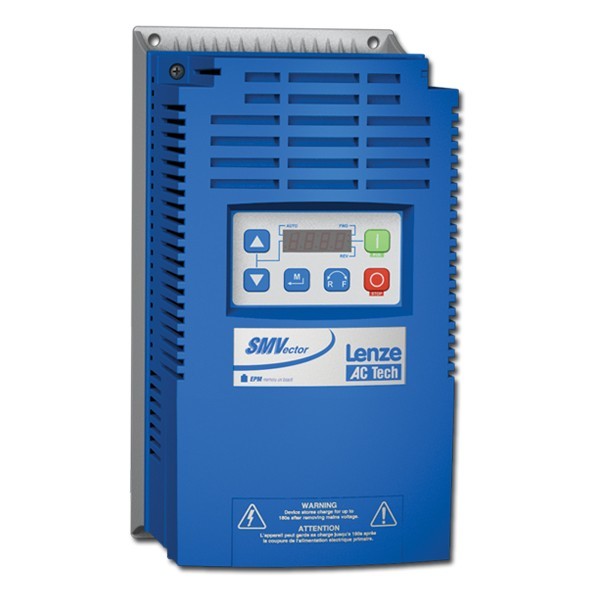

Flexible, simple and economical. The SMVector is a highly competitive AC drive. Its performance, simplicity and flexibility make it an attractive solution for a broad range of applications including: Food processing machinery, Packaging machinery, Material handling/conveying systems and HVAC systems. The SMVector is the right choice when you need it all – performance, power, packaging (NEMA Type 1 (IP31) Enclosure) and intuitive programming. Modes of Operation: Note: REQUIRES A VFD COMPATIBLE AC MOTOR.
Applications & Features
- Dynamic Torque Response.
- V/Hz and Enhanced V/Hz(Constant and Variable).
- Vector Speed or Torque Control.
- Sophisticated Auto-tuning (Motor Calibration).
- Impressive Low Speed Operation.
- Sequencer with 16 Programmable Segments.
- Flexible Power Ranges: 120/230V 1Ø (up to 1.5 Hp), 200/230V 1/3Ø (up to 3 Hp), 200/230V 3Ø (up to 20 Hp), 400/480 and 575V 3Ø (up to 60 Hp).
- Simple, intuitive user interface - Electronic Memory Module (EPM).
- Note: REQUIRES A VFD COMPATIBLE AC MOTOR.
Specifications
- Manufacturer Model: ESV222N04TXB
