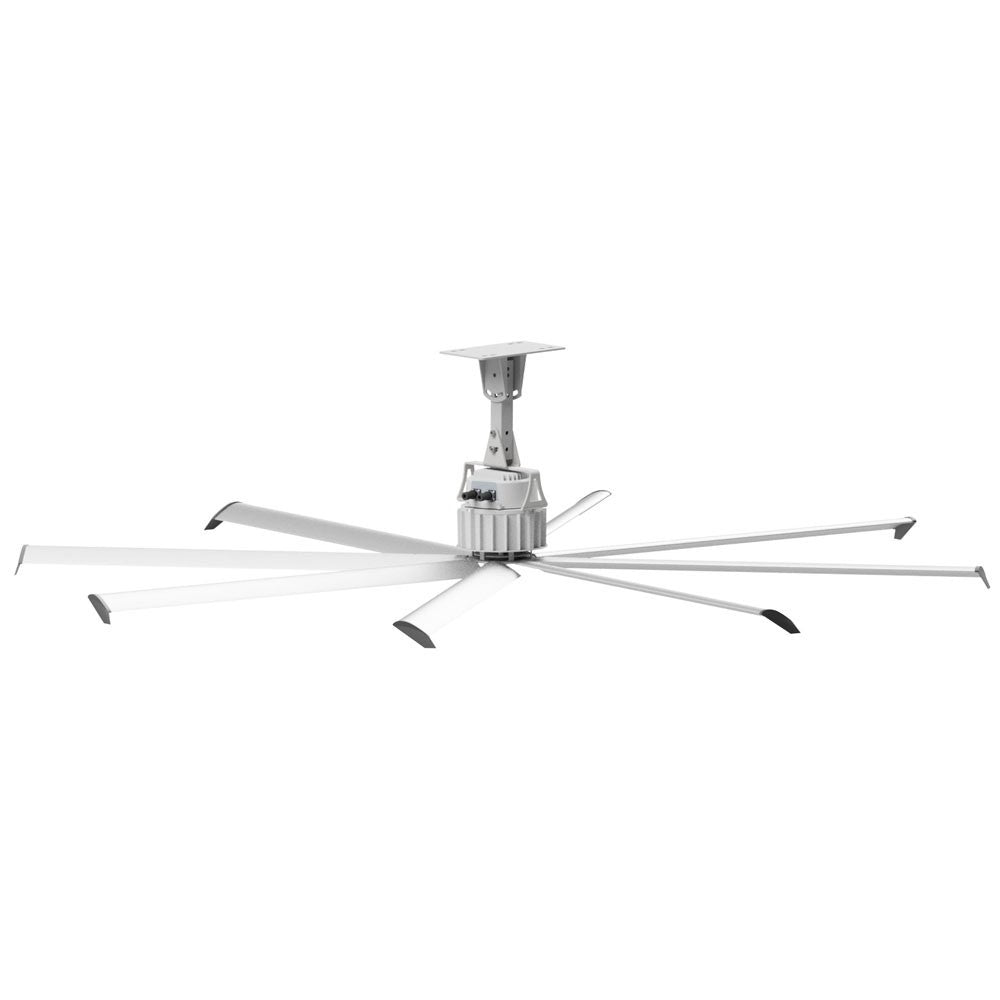

Canarm 8L10EC-460-3 Octa-Lite Commercial EC

Operating on a 1.35 HP EC motor, minimal power consumption is combined with impressive air volumes to create the highly efficient Octa-Lite Commercial EC HVLS Fan. Octa-Lite HVLS fans blanket a very large area by constantly moving air to create an expansive comfort zone. As a result, the big ceiling fan can create an evaporative cooling effect of three to four degrees throughout the facility. During the heating season, the Octa-Lite HVLS fan technology can destratify uneven temperatures that can be in excess of fifteen degrees from ceiling to floor. This results in significant energy savings since the heating system cycles less frequently. FEATURES Note: Required controller sold separately. See controls section

Applications & Features

• Equipped with eight extruded anodized, high performance E420 design aluminum airfoils. Contoured for maximum air movement so environments become cooler faster.
• Eight wingtip fences constructed of nylon 66 redirect outward airflow into downward airflow to improve and direct airflow downwards.
• 1/4” powder-coated steel and anodized aluminum chassis resists rusting and corrosion even in cold and damp environments.
• Direct drive system allows this fan to operate incredibly quiet. Totally enclosed direct drive, IP65 rated ECM motor. Onboard VFD is factory assembled and programmed for minimum start/stop torque loads.
• Quiet Performance & Minimal Maintenance.
• Conforms to CSA Standard 22.2# 133 and UL507.

Specifications

• Manufacturer Model: 8L10EC-460-3
